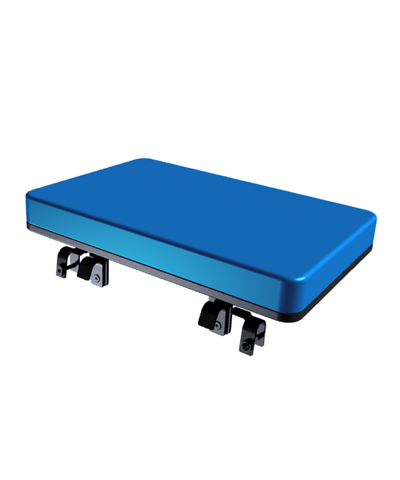

Bio ST Custom Heavy Duty Pediatric Linear Solid Seat Insert
Click Thumbnail to see a Slideshow
| Model: HS09-NB |
HCPCS Code: E2609 |
| Size: NA |
Bio ST Custom Heavy Duty Solid Seat Insert, up to 15" in width and depth. A foam module is attached to an interface plate which is secured to the wheelchair. The foam module consists of a Medium Foam Package (1" Soft Sunmate on 1" Medium Sunmate), a ¼" of HDPE (High Density Polyethylene) and a zippered Black Neoprene (Rubatex) cover. The interface plate is made of ½" HDPE and secured by height and angle adjustable steel mounting hardware (standard duty 4ea. L-Brackets w/4 holes, 4ea. J-Hooks w/1 countersunk hole & 4ea. horseshoe clamps for 1" tubing).
Show Related Product Information
If color other than Black Neoprene is desired, replace the last two letters of the model number (NB) with those from Color Selection section. i.e.- HS09-NB becomes HS09-NE when color Eggplant is desired.
If mounting hardware other than the above (including a one piece, hinged, seat and back system) is desired, select a modification from section A 4.1
If foam other than the Medium Package above is desired, select an alternative pre-set package from section A 3.2.1.1 or create a custom configuration from section A 3.2.1.2
