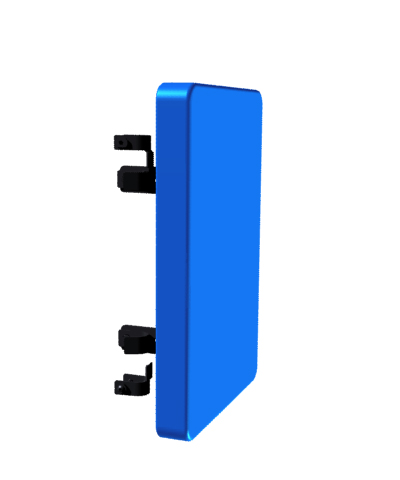

Bio ST Pediatric Linear Solid Back Insert
Click Thumbnail to see a Slideshow
Model: SB09-NB |
HCPCS Code: E2617 |
Size: NA |
Custom Solid Back Insert, up to 15" in width and height, made of a ½" of HDPE (High Density Polyethylene), a foam module (Medium Package 1" Soft Sunmate on½" Medium Sunmate), a zippered Black Neoprene (Rubatex) cover, secured by depth and angle adjustable steel mounting hardware (standard duty 4ea. L-Brackets w/4 holes, 4ea. J-Hooks w/1 countersunk hole & 4ea. horseshoe clamps for 1" tubing ). (T-Nuts installed to accept a pair of aluminum tracks for future mounting of Lateral Trunk Supports and Lateral Hip/Thigh Supports)
Show Related Product Information
If color other than Black Neoprene is desired, replace the last two letters of the model number (NB) with those from Color Selection section. i.e.- SB09-NB becomes SB09-NE when color Eggplant is desired.
If mounting hardware other than the above (including a one piece, hinged, seat and back system) is desired, select a modification from section A 4.1
If foam other than the Medium Package above is desired, select an alternative pre-set package from section A 3.2.1.1 or create a custom configuration from section A 3.2.1.2
