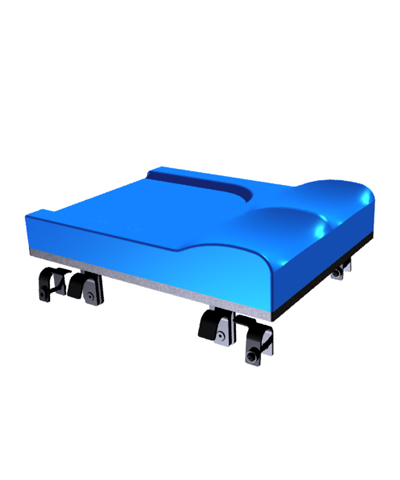

Bio ST Custom Heavy Duty Bio Well Solid Seat Insert
Click Thumbnail to see a Slideshow
| Model: HS04-NB |
HCPCS Code: E2609 |
| Size: NA |
Bio ST Custom Heavy Duty Solid Seat Insert, foam contoured to offer abduction and adduction while providing an ischial/trochanteric recess in the rear, 15" to 20" in width and depth. A foam module is attached to an interface plate which is secured to the wheelchair. The contour foam module consists of a Medium Foam Package (1" Soft Sunmate on 1" Medium Sunmate), a ¼" of HDPE (High Density Polyethylene) and a zippered Black Neoprene (Rubatex) cover. The interface plate is made of ½" HDPE and secured by height and angle adjustable steel mounting hardware (standard duty 4ea. L-Brackets w/4 holes, 4ea. J-Hooks w/1 countersunk hole & 4ea. horseshoe clamps for 1" tubing).
Show Related Product Information
If color other than Black Neoprene is desired, replace the last two letters of the model number (NB) with those from Color Selection section. i.e.- HS01-NB becomes HS01-NE when color Eggplant is desired.
If mounting hardware other than the above (including a one piece, hinged, seat and back system) is desired, select a modification from section A 4.1
If foam other than the Medium Package above is desired, select an alternative pre-set package from section A 3.2.1.1 or create a custom configuration from section A 3.2.1.2
